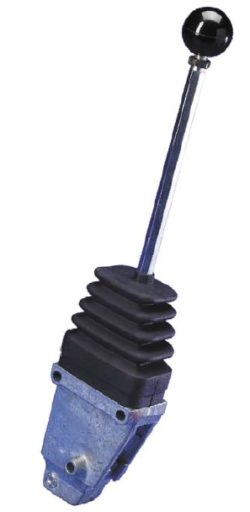

The Kongsberg Automotive valve controls permit remote control of high-pressure hydraulic valves, such as directional control spool valves. The valves and controls can be located where they are easiest to install and operate, eliminating the challenges of hydraulic lines. The remote valve controls are compact, easy to install units that can be used singly or “stacked” to operate any number of valves. The controls are connected to the valve by a high efficiency Kongsberg Automotive push pull cable and a valve connection kit. Dual axis controls are available to operate two valves independently.

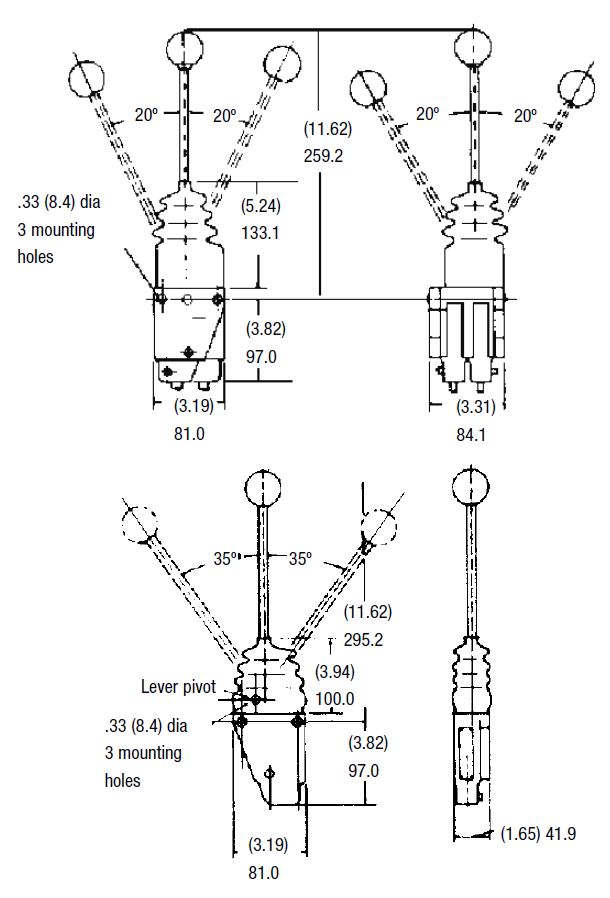

Single Controls Heads: 206301, 212500, 212501, 212502, 212503, 212504, 212505, 212506, 212508, 212509, 212510.
Dual Control Heads: 211711, 211713, 211714.

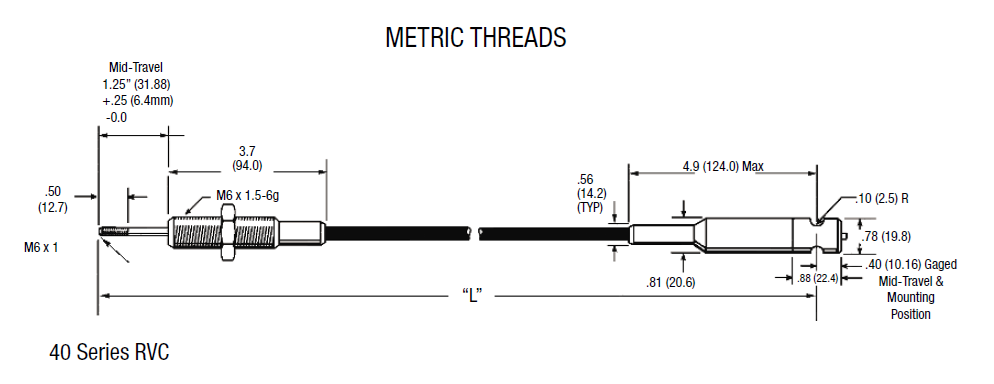

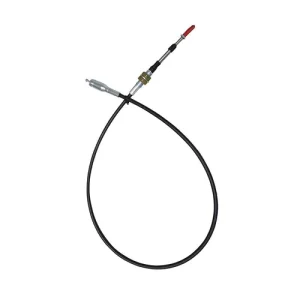

Cables to Suit: 210498/L, 206362/L, 206363/L (L = customer length in mtrs)
We offer a wide range of configurable options to match your exact setup:
We work with you from concept to completion, helping you replace legacy parts or develop custom systems.
Our engineers provide CAD-based configuration, prototyping, and testing to ensure your cable works perfectly the first time. We also offer push-and-pull testing as standard, with lifecycle testing available on request. For urgent projects, same-day or next-day turnaround can be arranged to keep your production schedules moving.
Services available:
CAD design, prototyping, push-and-pull testing, lifecycle testing (on request), plus same-day and next-day turnaround to support urgent marine, industrial, or specialist engineering projects.
CAD design,
Prototyping,
Push-and-pull testing,
Lifecycle testing (on request),
Same-day and next-day turnaround to support urgent marine, industrial, or specialist engineering projects.
