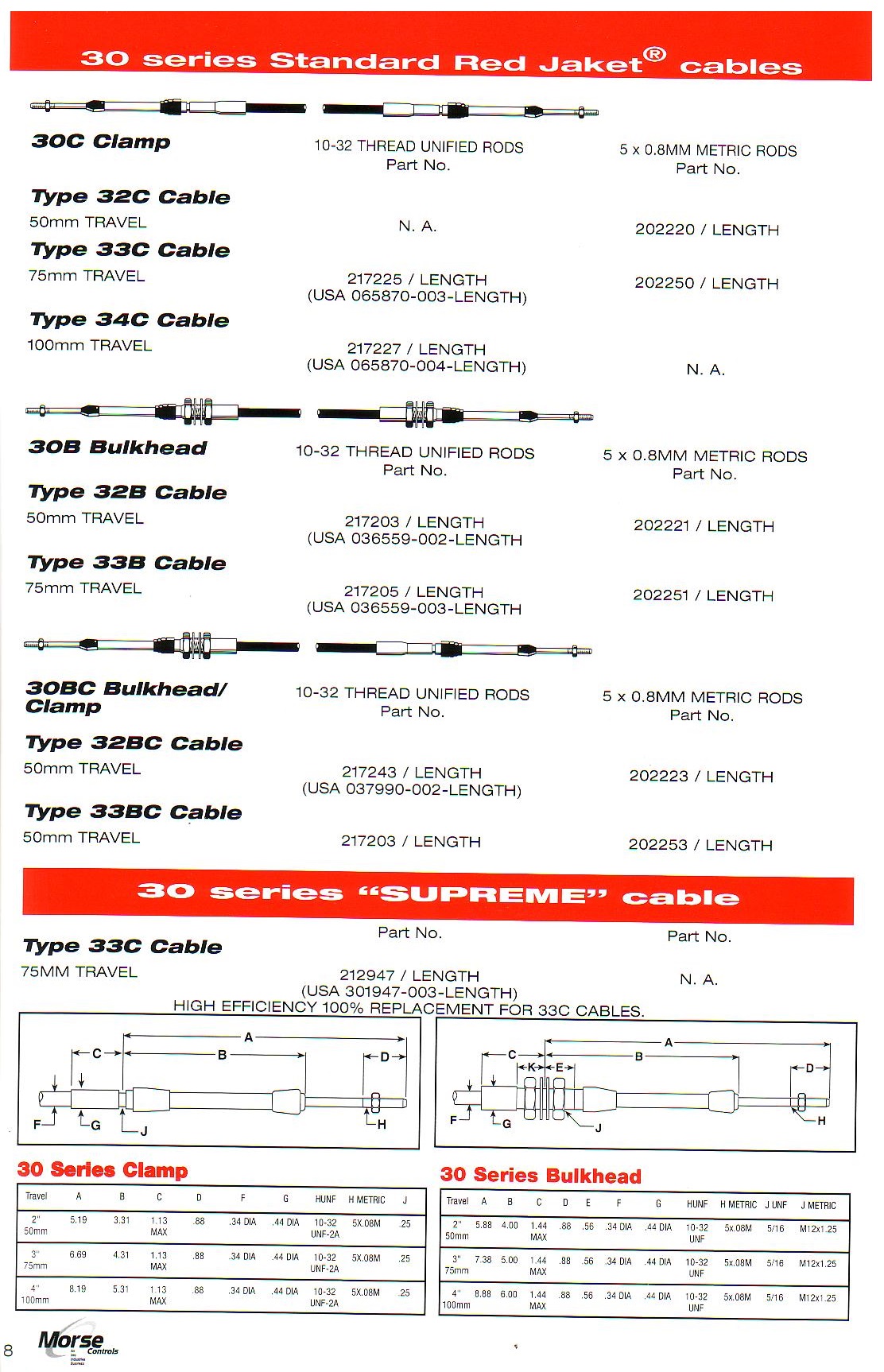

30s control cables can be offered at custom length from 0.50m to 40.00m plus. We offer different end fitting, Bulkhead, Clamp and Adjustable for the conduit. The standard travels are 2″ (50mm), 3″ (75mm) and 4″ (100mm) but we can also accommodate other travel requirements for special applications.
The old Morse ordering codes were very simple to work out. ie 33C equals a 30s cable with 3″ (75mm) of travel with clamp fittings. 32B equals a 30s cable with 2″ (50mm) of travel with bulkhead fittings.
32C – 202220/L (MET) – 217223/L (UNF) (USA: 301947-002-***ft)
33C – 202250/L (MET) – 217225/L (UNF) (USA: 301947-003-***ft – D32377-003-***”)
34C – 202270/L (MET) – 217227/L (UNF) (USA: 301947-004-***ft)
32B – 202221/L (MET) – 217203/L (UNF) (USA: 305399-002-***ft)
33B – 202251/L (MET) – 217205/L (UNF) (USA: 305399-003-***ft)
34B – 202271/L (MET) – 217207/L (UNF) (USA: 305399-004-***ft)
32A – 202202/L (MET) – 204102/L (UNF)
33A – 202232/L (MET) – 204132/L (UNF)
34A – 202262/L (MET) – 204162/L (UNF)
32BC – 202223/L (MET) – 217243/L (UNF) (USA: 304040-002-***ft)
33BC – 202253/L (MET) – 217245/L (UNF) (USA: 304040-003-***ft)
34BC – 202273/L (MET) – 217247/L (UNF) (USA: 304040-004-***ft)
We offer a wide range of configurable options to match your exact setup:
We work with you from concept to completion, helping you replace legacy parts or develop custom systems.
Our engineers provide CAD-based configuration, prototyping, and testing to ensure your cable works perfectly the first time. We also offer push-and-pull testing as standard, with lifecycle testing available on request. For urgent projects, same-day or next-day turnaround can be arranged to keep your production schedules moving.
Services available:
CAD design, prototyping, push-and-pull testing, lifecycle testing (on request), plus same-day and next-day turnaround to support urgent marine, industrial, or specialist engineering projects.
CAD design,
Prototyping,
Push-and-pull testing,
Lifecycle testing (on request),
Same-day and next-day turnaround to support urgent marine, industrial, or specialist engineering projects.
